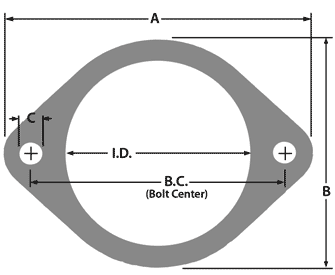

Flange P/N #
|
Application
|
I.D.
|
Bolt Center
|
A
|
B
|
C
|
|
F125-2CNC-VW
|
VW
|
1.25"
|
2.283" / 58mm |
2.95"
|
2.15"
|
.340" |
|
F138-2CNC-VW
|
VW
|
1.375"
|
2.283" / 58mm
|
2.95"
|
2.15"
|
.340"
|
| F150-2CNC-VW |
VW
|
1.50"
|
2.283" / 58mm |
2.95"
|
2.15"
|
.340" |
| F163-2CNC-VW |
VW
|
1.63"
|
2.283" / 58mm |
2.95"
|
2.15"
|
.340" |
| F5492101 | 1.50" | 2.283" / 58mm | .340" | |||
|
F5502101
|
Yamaha F6V
|
1.50"
|
2.36" / 60mm
|
3.05"
|
2.26"
|
.340"
|
| F5512101 | 1.50" | 2.44" / 62mm | .340" | |||
| FE1229821-1 | Ferrari | 1.50" | 2.44" / 62mm | .340" | ||
| F5302304 | Harley- Davidson | 1.88" | 2.565" / 65.1mm |
2.875"
|
3.295"
|
.340" |
|
PO617121-I
|
Porsche
|
1.50"
|
2.599" / 66mm
|
3.26"
|
2.28"
|
.340"
|
|
PO617122-I
|
Porsche
|
1.625"
|
2.599" / 66mm
|
3.26"
|
2.28"
|
.340"
|
|
PO617123-I
|
Porsche
|
1.75"
|
2.599" / 66mm
|
3.26"
|
2.28"
|
.340"
|
|
F163-2CNC-2
|
1.625"
|
2.75" / 69.8mm
|
.390"
|
|||
|
F175-2CNC-2
|
1.75"
|
2.75" / 69.8mm
|
.390"
|
|||
|
F188-2CNC-2
|
1.88"
|
2.75" / 69.8mm
|
.390"
|
|||
|
TF122xxx
|
Wastegate
|
1.50"
|
2.80" / 71.1mm
|
.340"
|
||
|
F163-2CNC-1
|
Flathead
|
1.625"
|
2.875" / 73mm
|
4.88"
|
3.26"
|
.390"
|
|
F175-2CNC-1
|
Flathead
|
1.75"
|
2.875" / 73mm
|
4.88"
|
3.26"
|
.390"
|
|
F188-2CNC-1
|
Flathead
|
1.875"
|
2.875" / 73mm
|
5.02"
|
3.78"
|
.390"
|
|
TF152xxx
|
Wastegate
|
1.75"
|
2.88" / 73.1mm
|
.340"
|
||
|
TF182xxx
|
Wastegate
|
2.125"
|
3.125" / 79.4mm
|
.340"
|
||
|
F5222808
|
BMW
|
2.25"
|
3.13" / 79.5mm
|
3.98"
|
2.94"
|
.390"
|
|
F5122113
|
Mitsubishi
|
3.00"
|
4.016" / 102mm
|
5.075"
|
3.600"
|
.512"
|
|
F5052811
|
Ford GT
|
2.80"
|
4.605" / 104.6mm
|
5.38"
|
3.62"
|
.420"
|
|
Flange P/N #
|
Gasket P/N #
|
I.D.
|
Bolt Center
|
A
|
B.
|
C
|
|
F150-2CNC
|
EG150-2
|
1.50"
|
2.625" / 66.8mm
|
3.49"
|
2.20"
|
.390"
|
|
F163-2CNC
|
1.63"
|
2.625" / 66.8mm
|
3.49"
|
2.20"
|
.390"
|
|
|
F175-2CNC
|
EG175-2
|
1.75"
|
3.00" / 76.2mm
|
3.78"
|
2.40"
|
.390"
|
|
F188-2CNC
|
1.875"
|
3.00" / 76.2mm
|
3.84"
|
2.55"
|
.390"
|
|
|
F200-2CNC
|
EG200-2
|
2.00"
|
3.00" / 76.2mm
|
3.90"
|
2.70"
|
.390"
|
|
F213-2CNC
|
2.13"
|
3.00" / 76.2mm
|
3.90"
|
2.70"
|
.390"
|
|
|
F225-2CNC
|
EG225-2
|
2.25"
|
3.50" / 88.9mm
|
4.55"
|
3.03"
|
.390"
|
|
F250-2CNC
|
EG250-2
|
2.50"
|
3.88" / 98.4mm
|
4.88"
|
3.26"
|
.390"
|
|
F300-2CNC
|
3.00"
|
4.12" /104.6mm
|
5.02"
|
3.78"
|
.390"
|
Standard Exhaust Flanges
Special Exhaust Flanges
